Inside Draco
Draco was DRACO's first full competition campaign in the NASA Student Launch. The 125-inch vehicle launched on a Cesaroni L2375 White Thunder motor, reached apogee, deployed its dual-deployment recovery system, and was recovered safely with no major damage — carrying a fully 3D-printed autonomous rover and laying the engineering foundation every DRACO rocket has built on since.
/ Mission Sequence
Concept of Operations

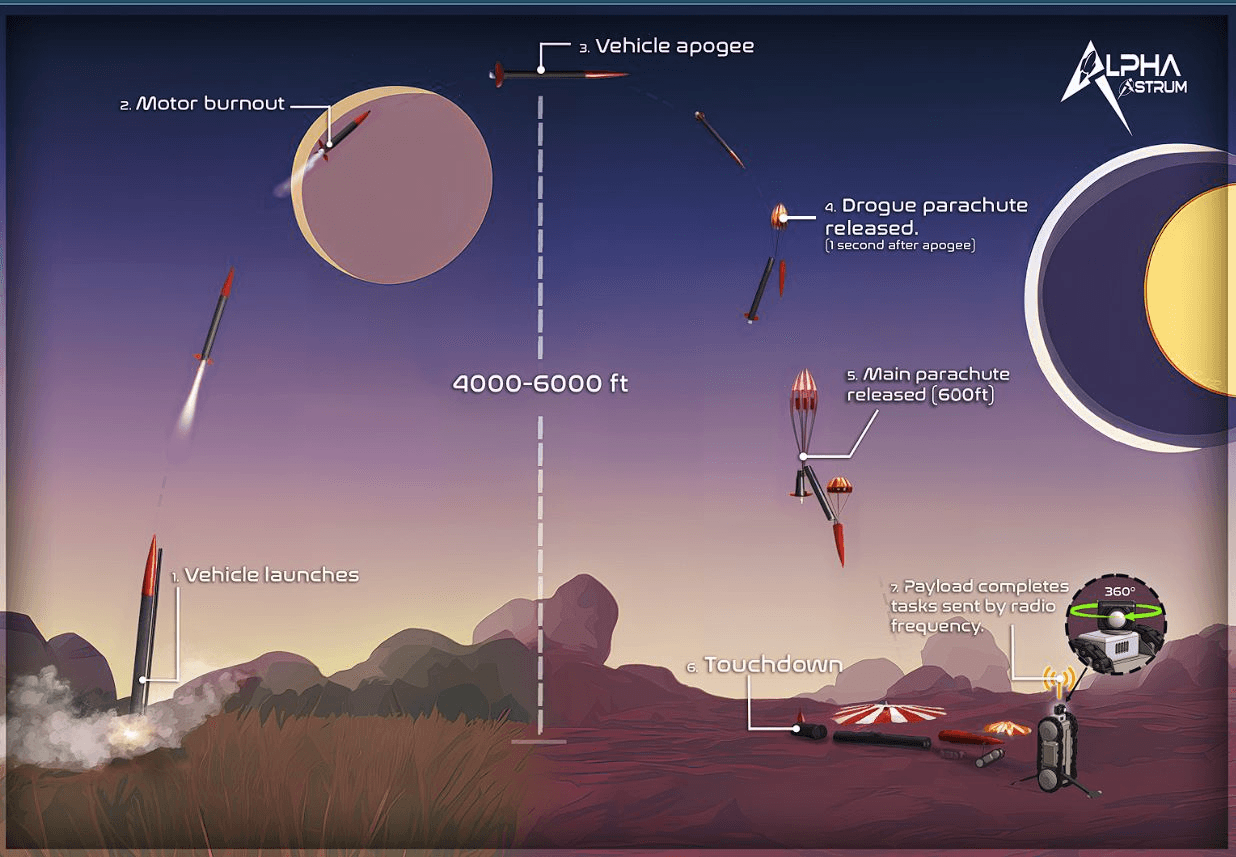

Concept of Operations — ascent, dual-deployment recovery, and rover post-landing sequence.

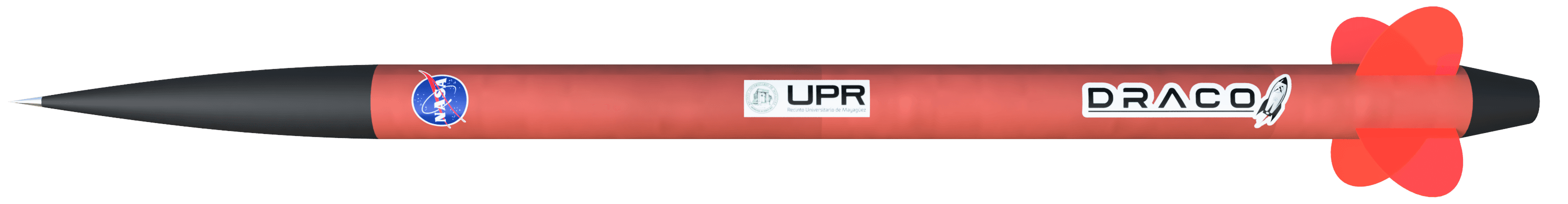

Draco
Vehicle Overview

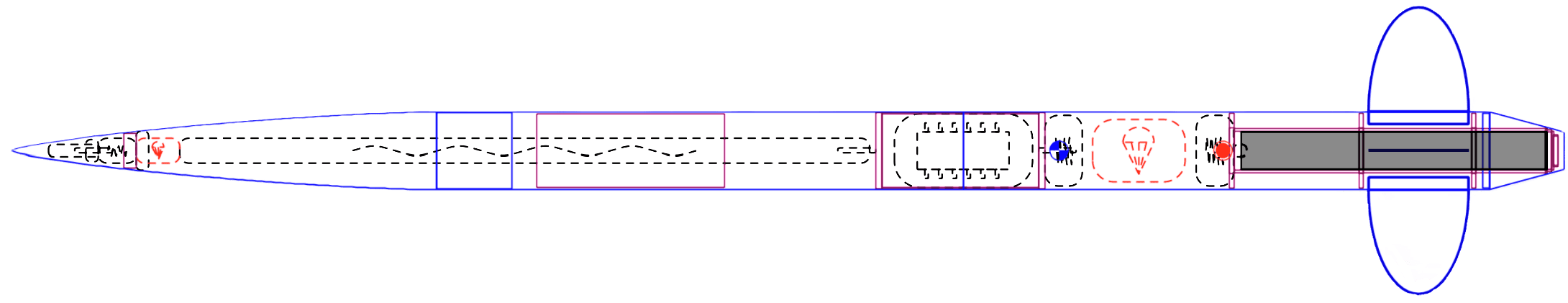

Internal-components overview · interactive labels coming soon
- Apogee
- 4,823 ft
- Weight
- 44.6 lb (wet)
- Length
- 10.4 ft
- Diameter
- 6 in
- Motor
- Cesaroni L2375 White Thunder
- Airframe
- G12 fiberglass airframes
/ Engineering Highlights
Key subsystems
3D-Printed Rover Payload

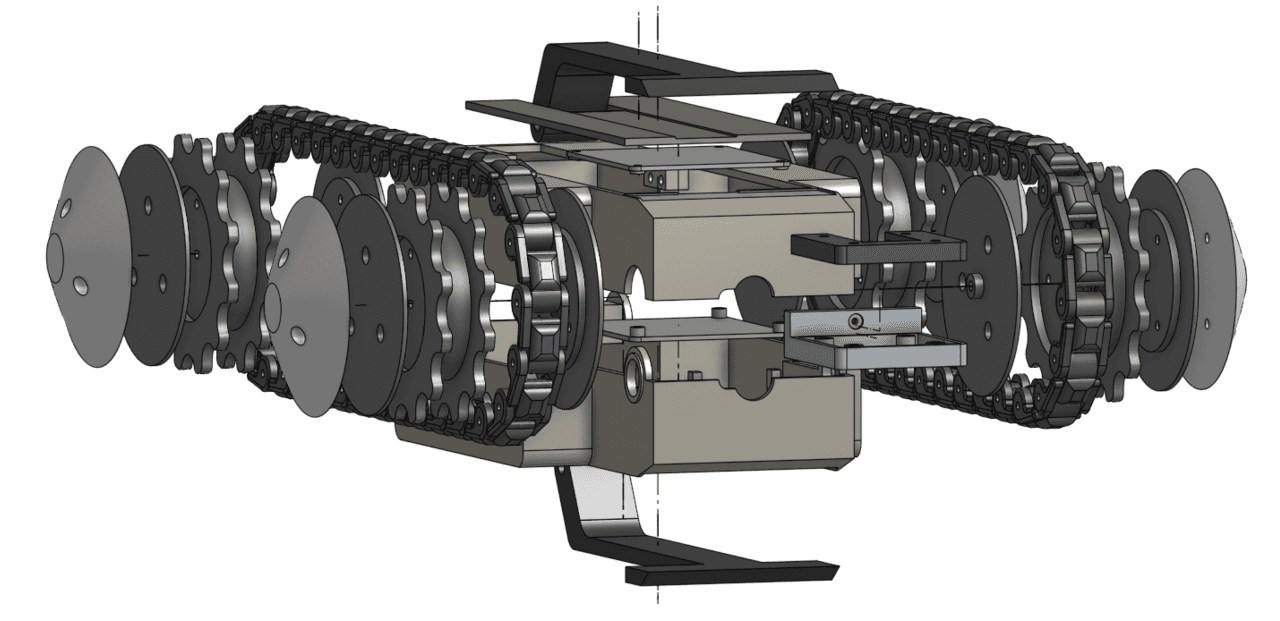

DRACO's first autonomous payload — exploded view of the rover, with a microcomputer, IMU, camera, and self-levelling actuators.
Payload Section View

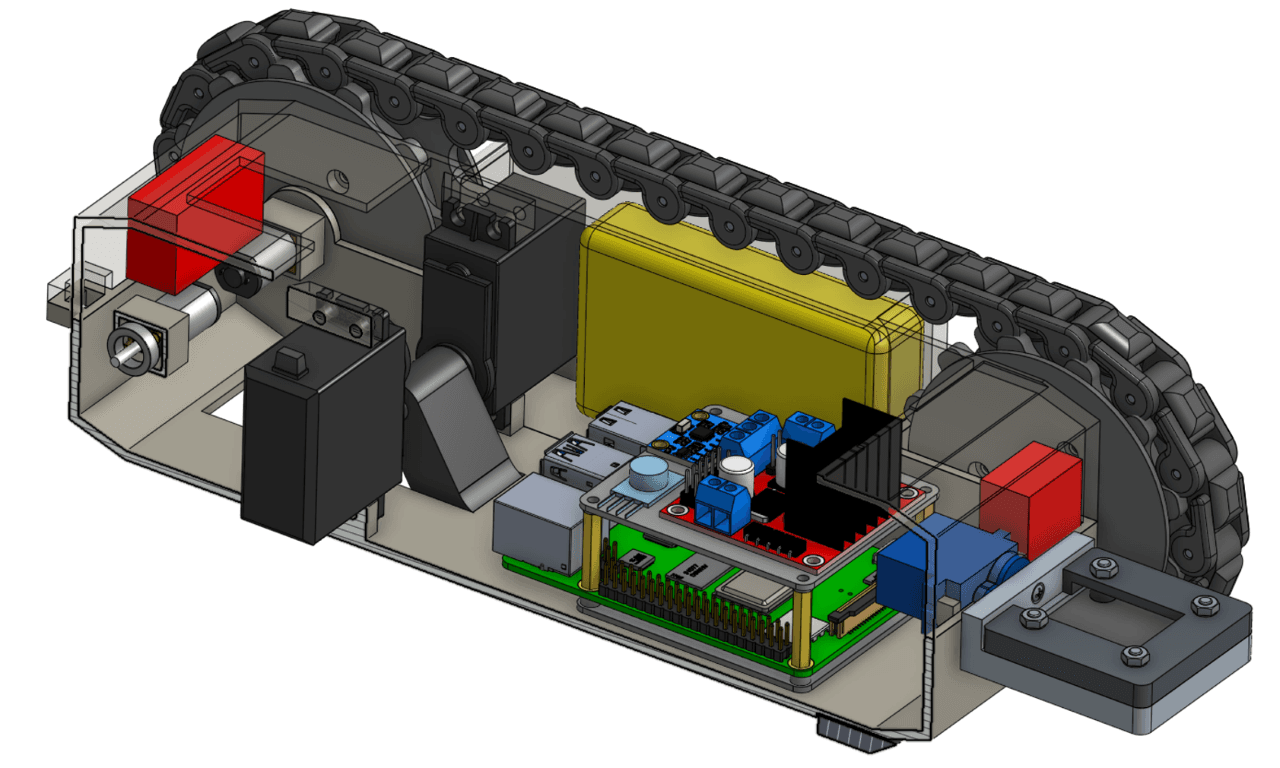

Section view of the payload bay, showing how the rover integrates with the launch vehicle's retention system.
Rover Mechanical Design

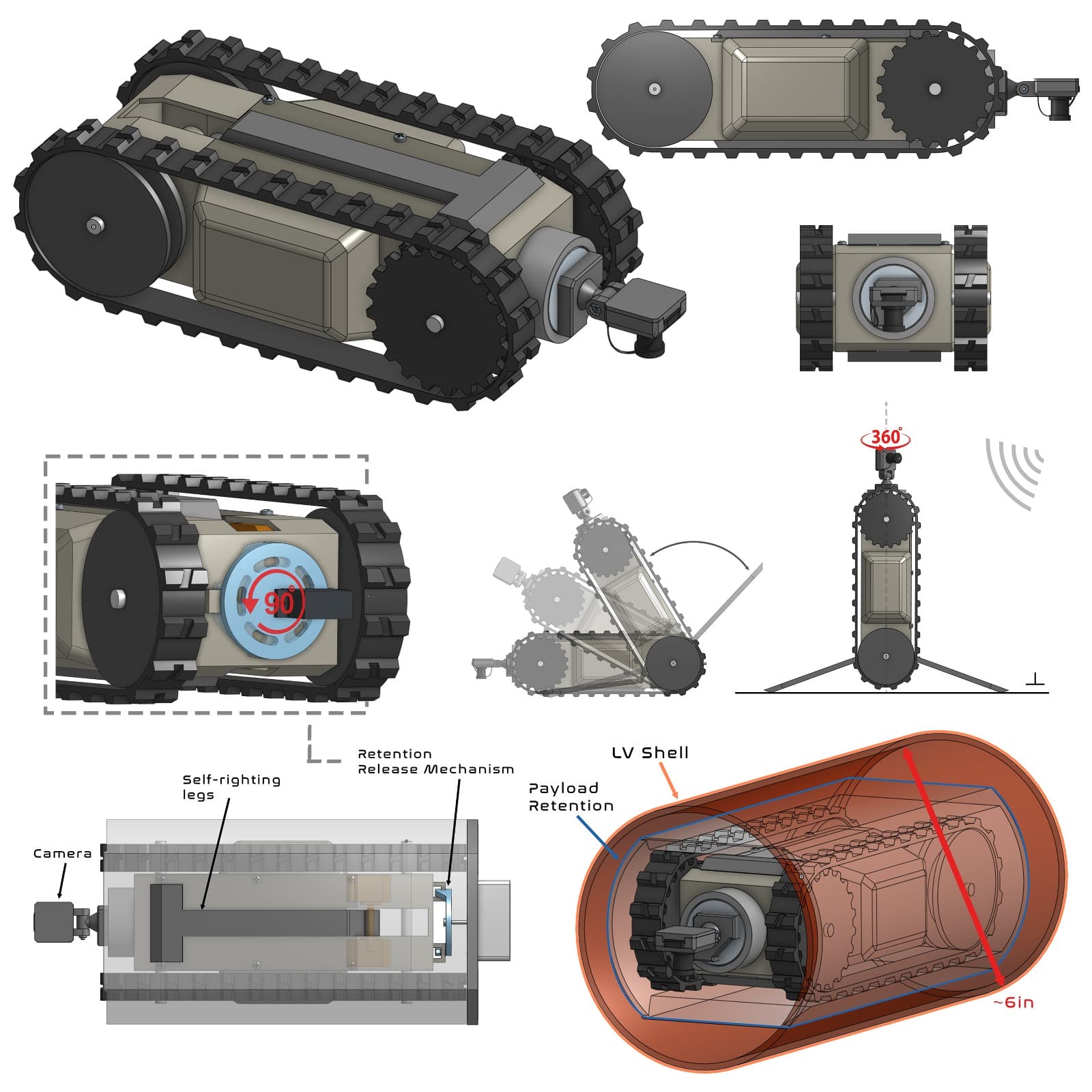

Hands-on rover assembly — fully 3D-printed for design flexibility, balancing structural rigidity with a low payload mass.
Draco in Alabama
Launch footage, manufacturing, integration, and the team behind the mission.
