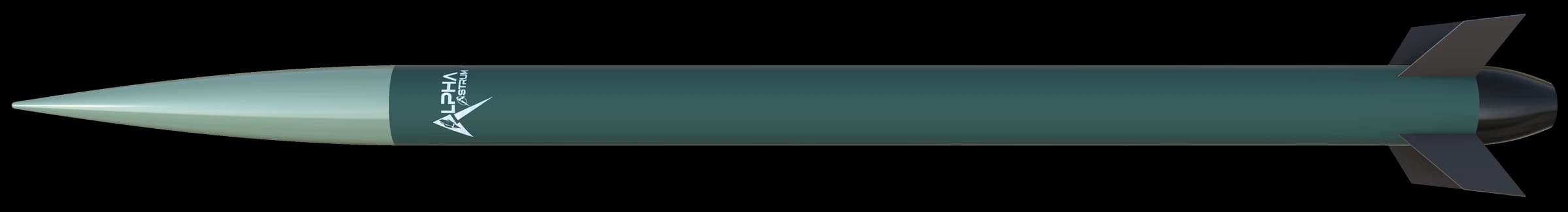

Rocket III rocket render

0ft

Target Apogee

0.0lb

Weight

0.00ft

Length

Scroll
/ OverviewMission Profile

Inside Rocket III

Rocket III was DRACO's 2021–2022 vehicle. Its Critical Design Review documents a 122 in, 55.8 lb full-scale design built around a Cesaroni L1685 motor and a declared target apogee of 5,230 ft, along with a dual-deployment recovery system and the LOLS (Launch Operation Location System) payload. A subscale test flight in December 2021 reached 2,621 ft but suffered a recovery-separation failure on landing. No Flight Readiness Review or Post-Launch Assessment Review has been recovered from the team's archives for this cycle, so the full-scale vehicle's achieved apogee and competition result — and whether it flew at Huntsville at all — remain unconfirmed.

/ Mission Sequence

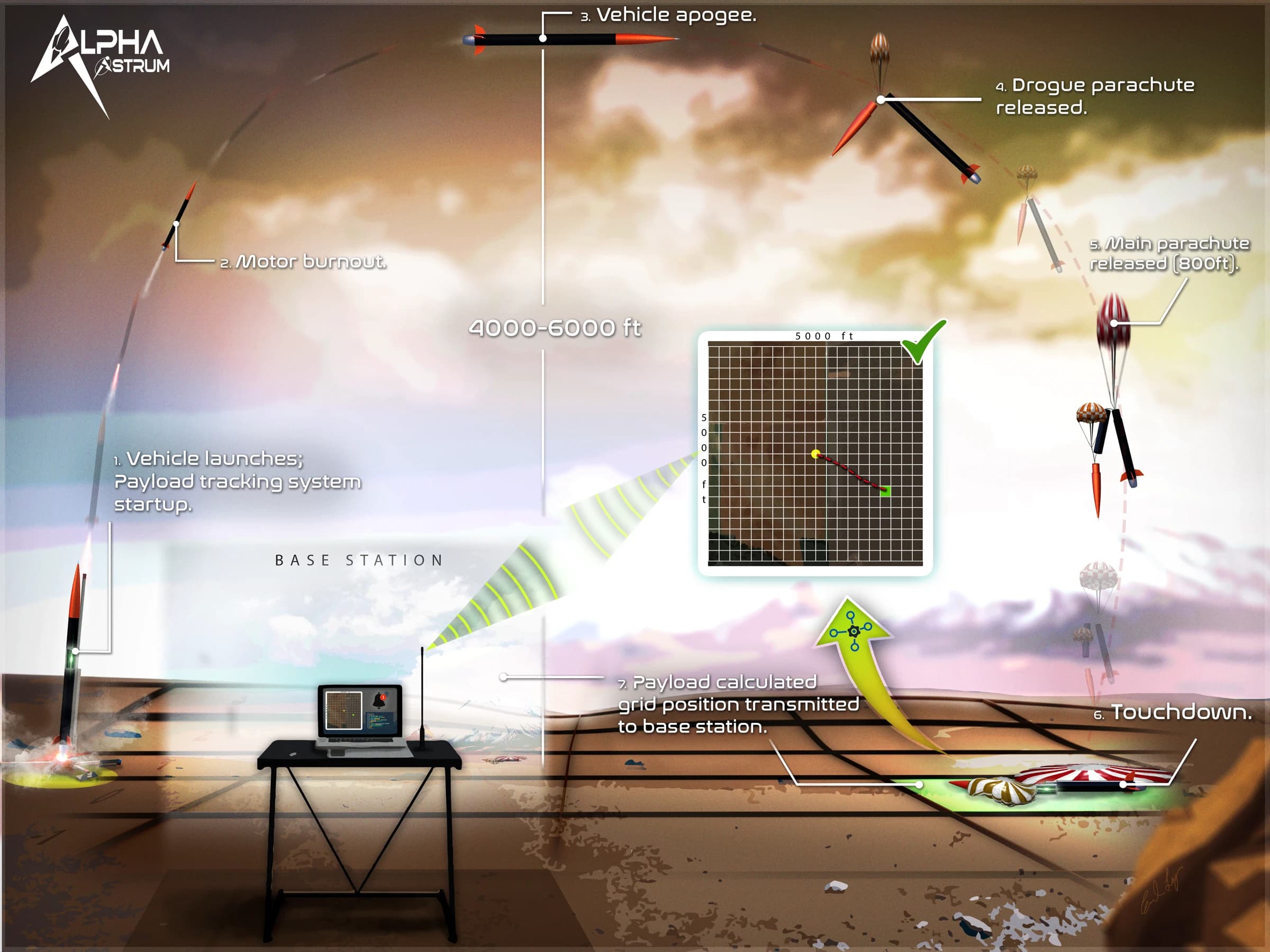

Concept of Operations

Recovered 2021–2022 Concept of Operations diagram.

Concept of Operations diagram for Rocket III

Rocket III

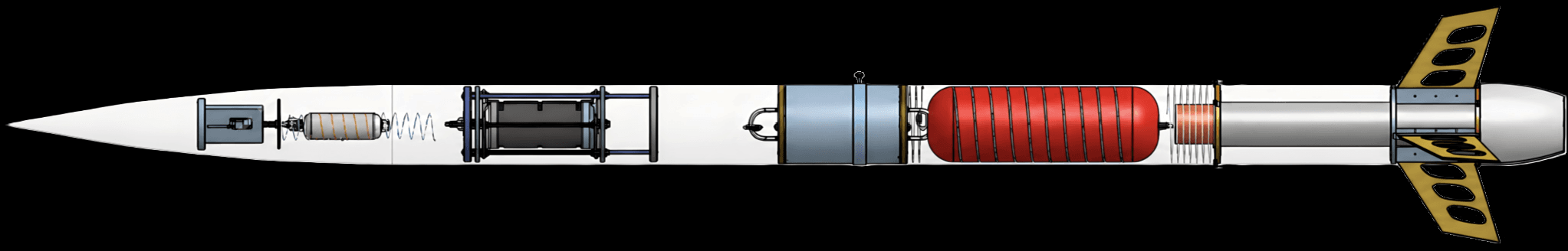

Vehicle Overview

Internal components of Rocket III

Internal-components overview · interactive labels coming soon

Target Apogee
5,230 ft
Weight
55.8 lb
Length
10.17 ft
Diameter
6.188 in
Motor
Cesaroni L1685
Airframe
BlueTube

/ Engineering Highlights

Key subsystems

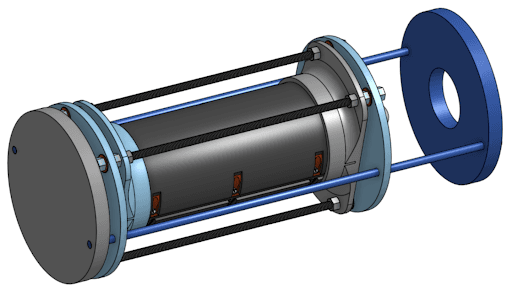

CAD render of the 2021–2022 payload bay.
Subsystem 01

Payload Bay (2021–2022)

Recovered CAD render of the 2021–2022 payload bay — the LOLS (Launch Operation Location System) payload's housing.

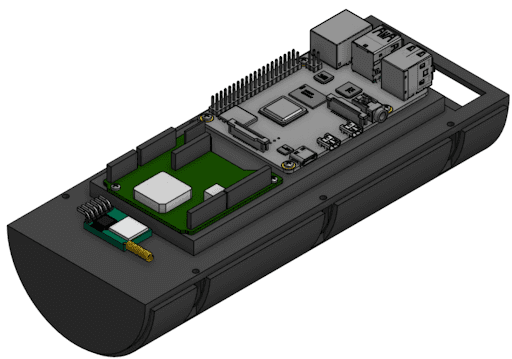

CAD render of the 2021–2022 payload electronics bay.
Subsystem 02

Payload Electronics Bay

Recovered render of the payload electronics bay used by the 2021–2022 vehicle.

/ GalleryMission Photos

Rocket III

Launch footage, manufacturing, integration, and the team behind the mission.
